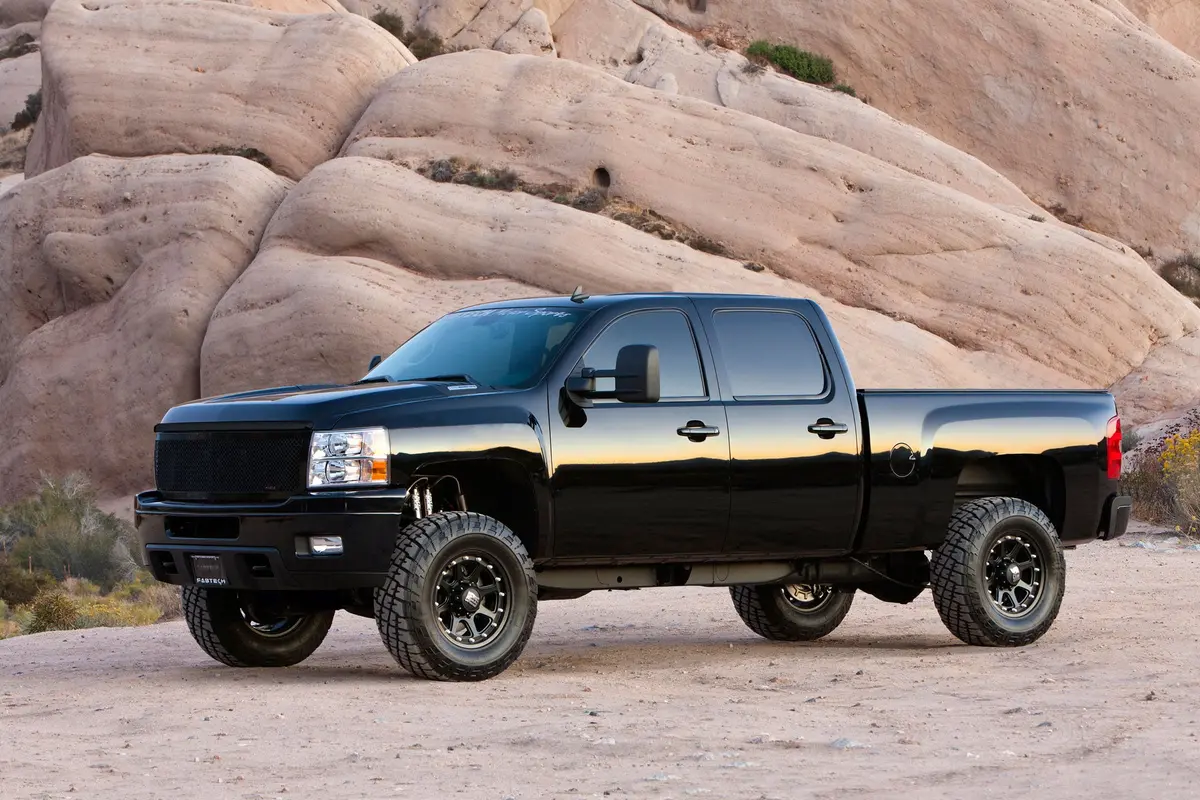

Premium 3.5-inch lift suspension kit featuring Uniball upper control arms and adjustable dual-mode leaf spring shocks—engineered for enhanced articulation, durability, and ride quality on 2011 to 2019 Chevrolet and GMC C/K2500HD and 3500HD heavy-duty trucks.

Description

The 4” Ultimate System is available with our Uniball Upper Control Arms that feature .120” wall 4130 Chromoly tubing with a 1.50” OD 1” FK Stainless PTFE Uniballs for 9” of front wheel travel. The system also includes heavy duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. The system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1” rear block kit is available. Uniball Upper Control Arms are available separately as an upgrade to stock, previously installed Fabtech’suspensions or other aftermarket suspension systems. Includes front 2.5 Dirt Logic Stainless Steel coil over shocks and rear 2.25 Dirt Logic Stainless Steel shocks.
