🔊 TMS24-69

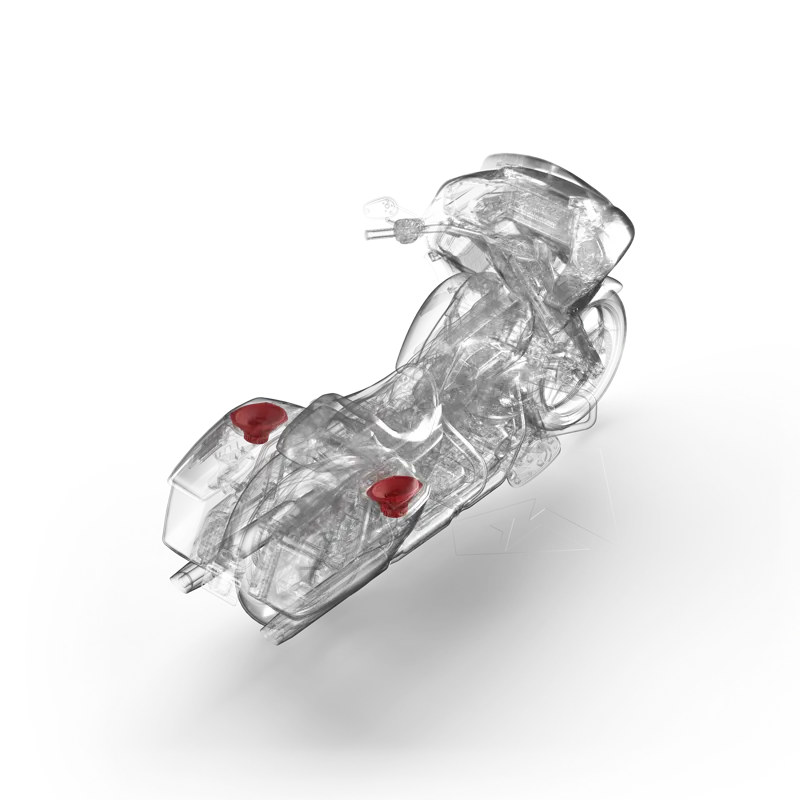

Harley-Davidson® 6×9” Speaker – Purpose Built for Select Models

The TMS24-69 is designed specifically for 2024+ Harley-Davidson® ABS saddlebags and provides a high-performance, long-throw, high-output audio solution. Upgrade your ride with rich lows, clear mids, and crisp highs.

🎵 Key Features

• Purpose-built for 2024+ Harley-Davidson® ABS bags with HD24BL69
• Upgradeable for TMS69BL14 and TMS69BL9813 kits
• Precision-tuned, long-throw, high-output design
• Extended frequency range for stronger low-end response
• Motor cover protects valuables from heat damage
• Curvilinear poly cone with 10% carbon-fill
• Santoprene® VAST surround for long-lasting durability
• Larger voice coil and magnet for higher power handling
• Neodymium motor: up to 35% lighter and 65% smaller than ferrite/ceramic
• 2nd order crossover for high-frequency clarity, reliability, and listening comfort
• Vented Kapton® voice coil former improves airflow & power handling
• ICC (Integrated Concealed Crossover) eliminates external black boxes

🔧 Specifications

• Weight: 46.3 oz (1,313 g)

• Mounting Depth: 3.3 in (83.5 mm)

• Sensitivity: 91.4 dB @ 1W/1m

• Tweeter Size: 25 mm nominal diameter

• Power Handling: 150W RMS

• Nominal Impedance: 4 ohms

• Terminal Connector: Factory-sized male spade

• Frequency Response: 50 – 20,000 Hz

• 2-Year Warranty
