Description
| Size mm (in.) |
200 (8) |
| Power Handling – Continuous W |
220 |
| Power Handling – Peak W |
440 |
| Impedance Ohm |
0.4 |
| Design |
Super Flat Sealed |
| Voice Coil Ø |
38.6 (1.52) mm (in.) |
| Frequency Response Hz |
32 ÷ 400 |
| Magnet size D x d x h mm (in.) |
110 x 45 x 17 (4.33 x 1.78 x 0.67) |
| Weight of one component kg (lb.) |
4.3 (9.48) |
| Magnet |
High Density Flux Ferrite |
| Cone |
Pressed paper |
| Voice Coil Type |
Copper |
PERFECT FOR UNDERSEAT

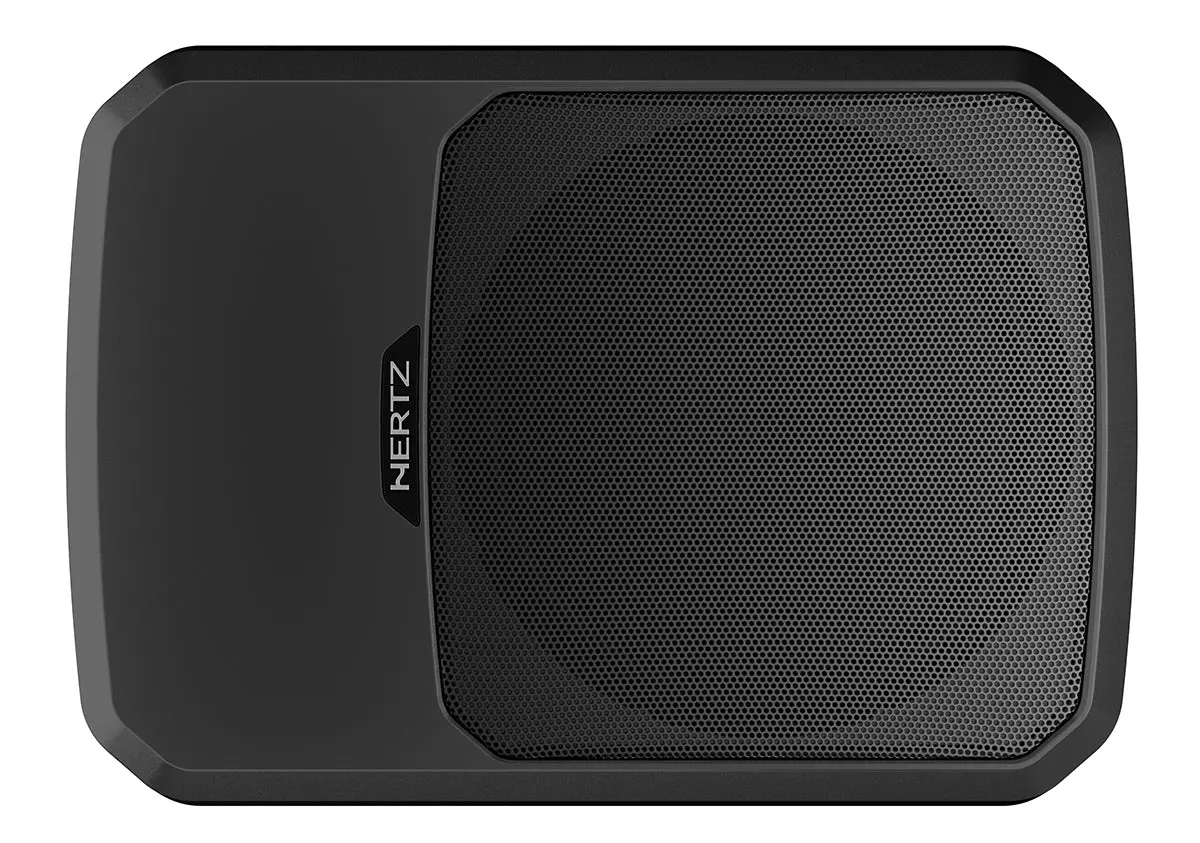

Looking to amp up your car audio experience with some serious bass? The Hertz DBA201F 8″ Underseat Loaded Shallow Active Subwoofer Box is designed to deliver high performance even in the most compact spaces. This powerhouse fits neatly under your seat without sacrificing sound quality, making it perfect for car owners who crave that extra thump without compromising on space.
| Operating voltage VDC (Fuse) |
6.5 ÷ 18 (15A) |
| Start – Stop voltage VDC |
6 |
| Idling current A (Power OFF) |
260 m (1 m) |
| Consumption @ 14,4 VDC Max musical power A |
8.5 |
| Remote IN Turn on VDC (Current) |
4 (1 mA) |
| PRE input signal Turn ON VRMS |
10 mV |
| SPK input DC Turn ON VDC |
2 |
Power Supply
| Distortion – THD @ 100 Hz % |
0.15 |
| Bandwidth Hz |
15 – 150 |
| S/N ratio dBA |
100 |
| Output power (RMS) @ 14,4 VDC, 1% THD W |
220 |
Amplifier Stage
| PRE input signal VRMS (impedance) |
0.2 ÷ 5 (10kΩ) |
| SPK input signal VRMS (impedance) |
1.2 ÷ 30 (6Ω) |
| LO-PASS Filter @ 24 dB Oct adjustable Hz |
50 ÷ 150 |
| Subsonic Filter @ 24 dB Oct Fixed Hz |
15 |
| Phase switch |
0 / 180° |
| Bass Boost @45 Hz dB |
0 ÷ 6 |
| Sub remote volume control dB |
0 ÷ -15 (HRC 01 included) |
